Multifunctional Digital Read Out For Lathe

Name: Multifunctional Digital Read Out For Lathe
Brand: SINO
Price: 1 USD

Multifunctional Digital Read Out For Lathe Manufactures

Brand Name : SINO

Model Number : SDS5-4VA, KA-300, KA-500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : 2 axes metal TFT lathe digital readout unit

Usage : 2 axes lathe propose

System : Colorful digital readout SDS5-4VA

Scale model : KA-500 & KA-300

Signal : Standard TTL (RS422 is optioned)

Resolution : 5µm (0.0002"）

DRO mounting : On lathe's electric cabinet by rack for lathe

Meas. travel : KA-500 series: 270-520mm / KA-300 series: 770-1020mm

Display : Colorful screen

Voltage : 50Hz - 60Hz , 100V - 240V for digital readout

Contact Now

SINO 2 axes metal TFT lathe digital readout unit SDS5-4VA mounting on electric box with two linear encoders

This digital readout unit is special for 2 axes lathe propose.

The colorful DRO SDS5-4VA should be mounting on the lathe's electirc cabinet by rack for lathe.

The KA-300 linear encoder should be for axis Z, and KA-500 linear encoder should be for axis X.

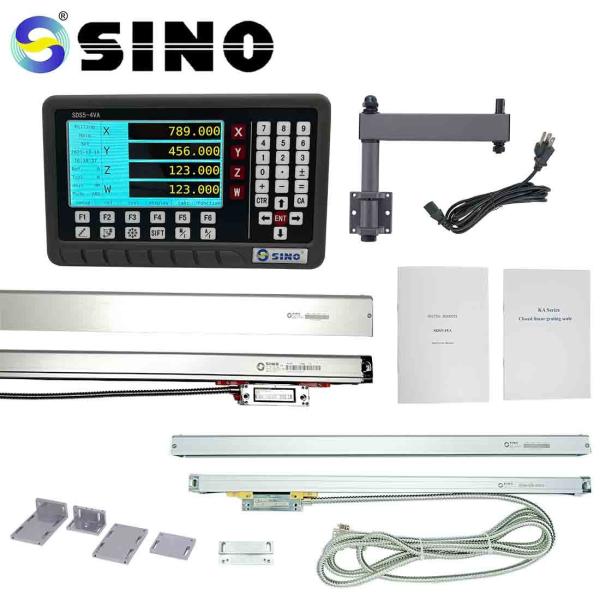

Package list:

Item name	TFT lathe machine digital readout unit
Digital Readout (DRO)	SDS5-4VA
Linear scale for axis Z	KA-300 720-1020mm
Linear scale for axis X	KA-500 270-520mm
Rack for DRO	Rack for lathe
Protection cover for Z scale	Type D
Protection cover for X scale	Type H
Bracket for scales	T-bracket (1set) / KA-500 bracket (1pc)
Others	Cable / Screws / Manual

Functions for lathe machine:

Radius / Diameter Conversion
Tool Diameter Compensation
Taper Measurement
200 Tools Storeroom

Detail Information:

Multifunctional Digital Read Out For Lathe

Pin Description:

Multifunctional Digital Read Out For Lathe

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Multifunctional Digital Read Out For Lathe

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:

Multifunctional Digital Read Out For Lathe
