Digital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTL

Brand Name : SINO

Model Number : SINO KA-200 Digital Readout System

Certification : CE, RoHS

Place of Origin : GUANGZHOU

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000 per month

Delivery Time : 5-8 days

Packaging Details : Carton box

Item : SINO KA-200 Digital Readout System

Model : KA-200mm

Usage : Lathe Boring Machine

Resolution : 0.5/1/5um

Output : TTL/ RS-422

Protection Class : IP53

Operating temperature : 0℃-45℃

Color : Silver

Contact Now

SINO KA-200 Digital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTL

KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by optimizing the internal and external structure.KA-200 linear glass scale is a measuring machine suitable for Lathe, boring, milling machine.

Specification

Model KA-200 series
Travel length(mm) 30-360
Scaling distance 0.02mm(50 lines/mm)
Accuracy ±3µm,±5µm,±15µm/m (20±0.1℃)
Resolution(um) 0.5um/1um/5um
Power supply +5V±5%,80mA
Seal protection IP53
Moving speed

High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
Output signal Square wave TTL / RS422
Operating temperature 0℃-45℃
Storage temperature -20℃--80℃
Humidity 100% not condensed
Voltage 5V/24V

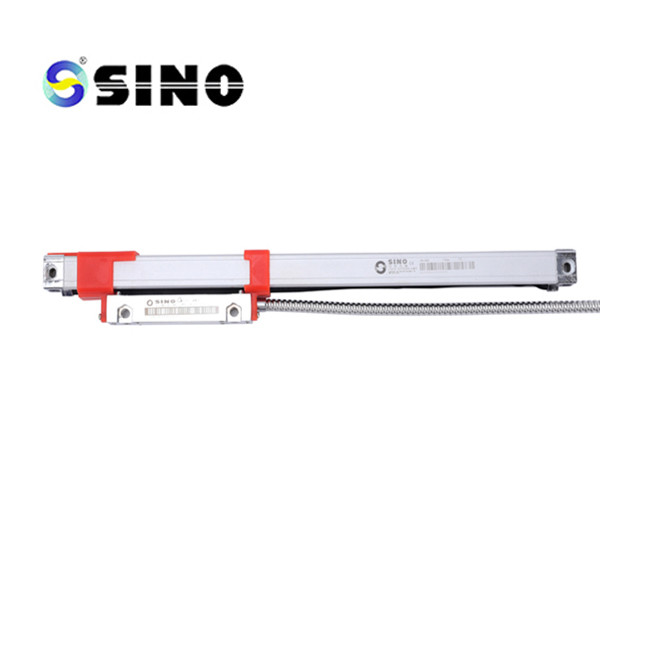

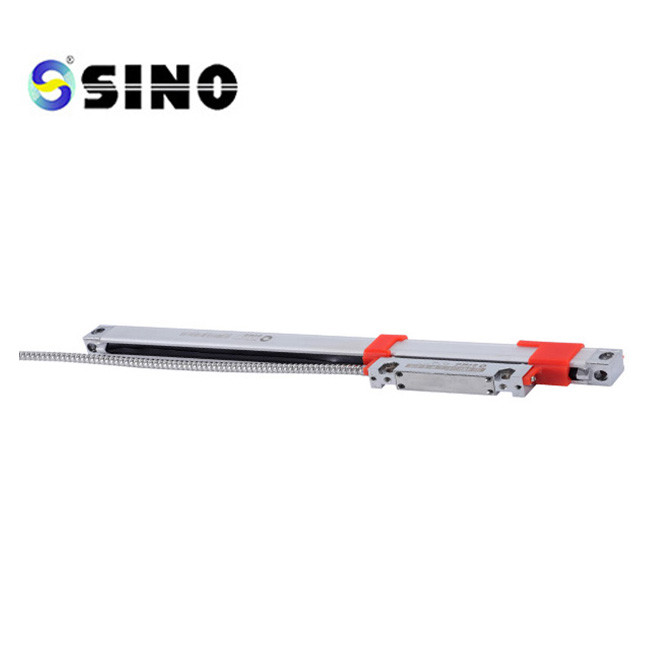

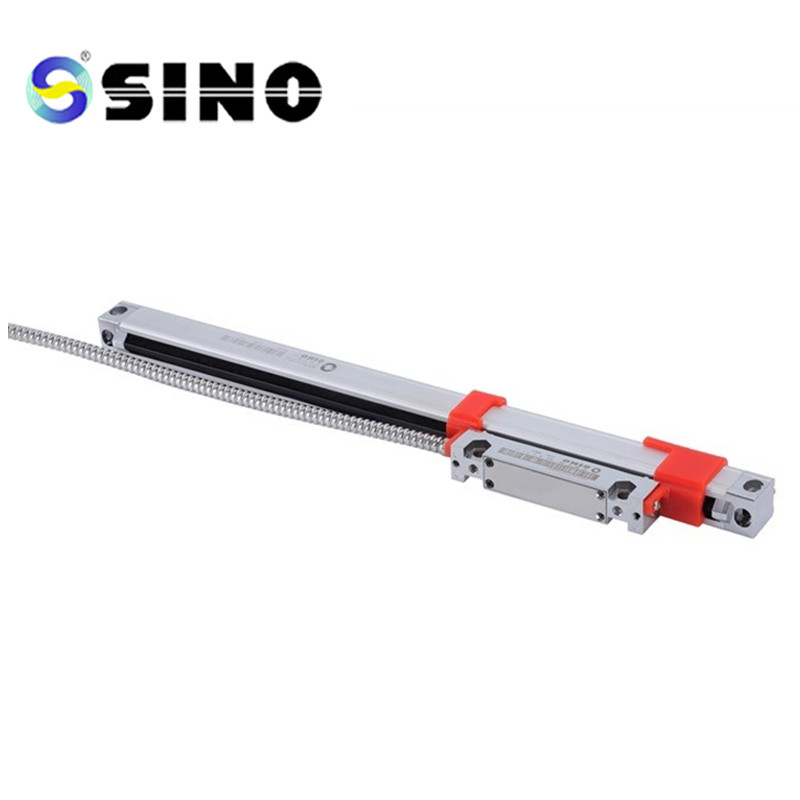

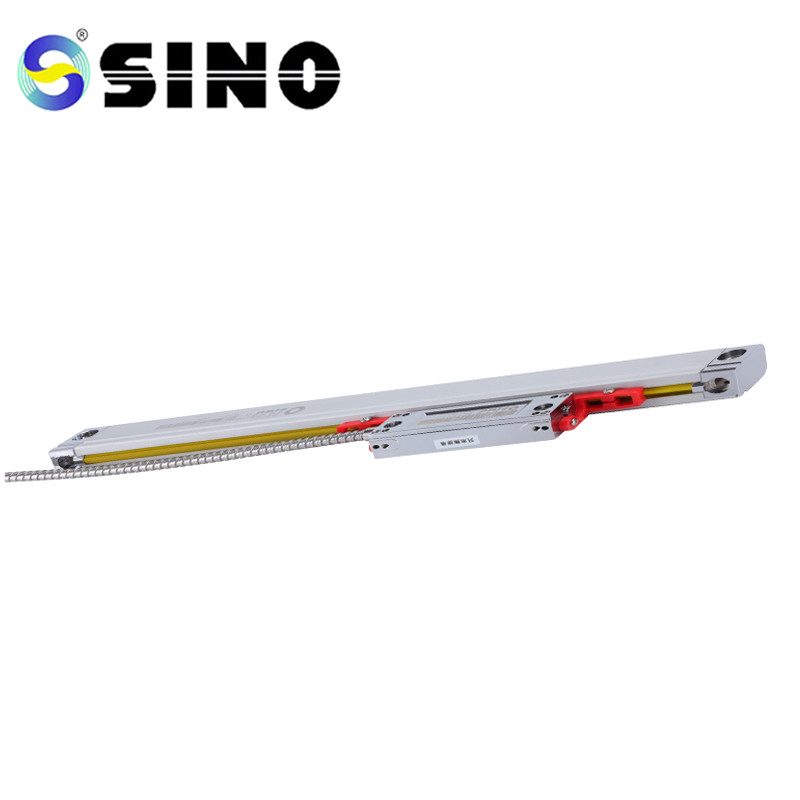

Product images

Digital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTLDigital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTLDigital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTLDigital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTL

All scales will be tested before delivery.

Each scale have its own test report:

Digital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTL
