2-Axis Digital Reading Display Compliant With Most Metal Processing Measurements SINO SDS6-2V

2-Axis Digital Reading Display Compliant With Most Metal Processing Measurements: SINO SDS6-2V

The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can better complete corresponding tasks and effectively improve the quality of production processes.

The functions of SDS6-2V include:

200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option

The places where SDS6-2V DRO is widely used:

Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)

Specifics of SDS6-2V:

There are several uses for the dual axis digital reading display DRO SDS-6-2V. Users are able to adjust system configurations to better suit their requirements and accommodate varying processing demands. The SDS6-2V can be used by operators to carry out a number of measurement tasks, such as measuring taper, computing arcs, traversing inclined surfaces, drilling holes at regular intervals around the circle's center, and using digital filters. Owing to its numerous features, the SDS6-2V can be utilized in a variety of machining settings, giving users a better understanding of the equipment's movement trajectory and enabling a more thorough display of the machine tool's movement trajectory to ascertain whether the machine tool is operating on the intended machining track. It is also the first company in China to use DRO systems with 16 bit and 32-bit calculators. The maximum a/b input frequency of the DRO system is 5.

Model No:.

SDS6-3V : Standard

SDS6-3VF : Extra communication function

SDS6-3VE : Extra out put EDM function

Characteristic​:

Imported chips
Industrial quality

High precision data
Stronger resistance to interference
Function key for machine output(EDM)

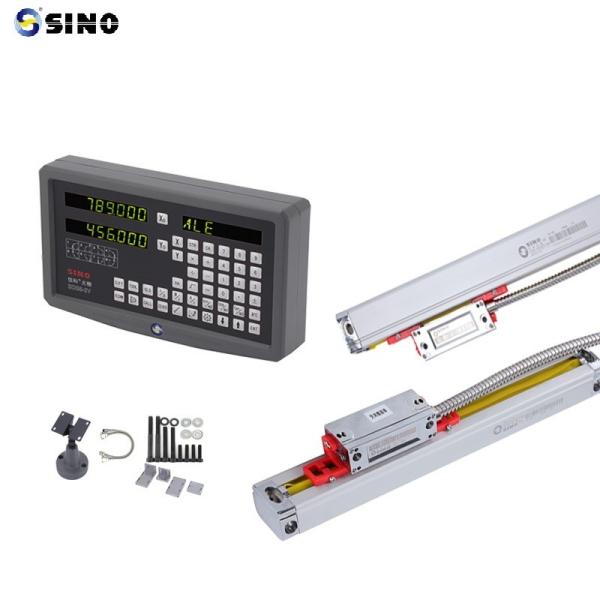

Product image /photos:

​

The rack in the picture is optioned, not standard product.

2-Axis Digital Reading Display

Metal Processing 2-Axis Digital Reading Display

SINO SDS6-2V Digital Reading Display

2-Axis Digital Reading Display Compliant With Most Metal Processing Measurements SINO SDS6-2V Images
