Two axis SDS 2MS digital DRO and KA grating ruler, with the following characteristics:

1. Dual axis DRO: Using this kit, you can see and control the machine tool's movement along two axes at the same time, like the X and Y axes of a milling machine. Making informed selections will be made possible by your ability to clearly and instantly comprehend the motion trajectory of the milling machine when it is in use.

2.Magnetic ruler encoder system: Magnetic technology may produce accurate and dependable readings, positioning to the machine tool's real-time location when SDS2MS and KA linear ruler encoder system collaborate. When necessary, the machine shaft's DRO display unit and magnetic balance are employed to track work progress and offer position feedback, allowing the equipment to quickly and precisely locate the appropriate position.

3. The SDS 2MS DRO kit needs a broad voltage range of 85V to 240V AC. Its capacity to regulate voltage guarantees compliance with different power supply standards. The apparatus can only measure the machine tool's location precisely and operate appropriately when the voltage is applied correctly.
4. User-friendly interface: The SDS2MS has a digital display screen and buttons, and the DRO display unit's interface is easy to use. With its several preset features and function buttons, you may rapidly switch between them to get useful info whenever you need it.

Capabilities possessed:

1. Radius/diameter conversion.

2. MM/Inch conversion.

3. Absolute/relative conversion.

4. Mid-splitting function.

5. Easy "R" function.

6. Smooth "R" function.

7. PCD hole positioning on circumference.

8. 200 groups zero position memory.

Detailed parameters of DRO SDS2MS digital readout system:

1. Voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz

2. 15w power consumption: 25 va

3. Coordinate the number: a coordinates, two coordinates

4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols

5. Net Weight: 1.3kg/2.9lb

6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.

7. Allow the input signal frequency: > 100 KHZ

8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 mu m, 0.5 microns

Product image /photos:

​

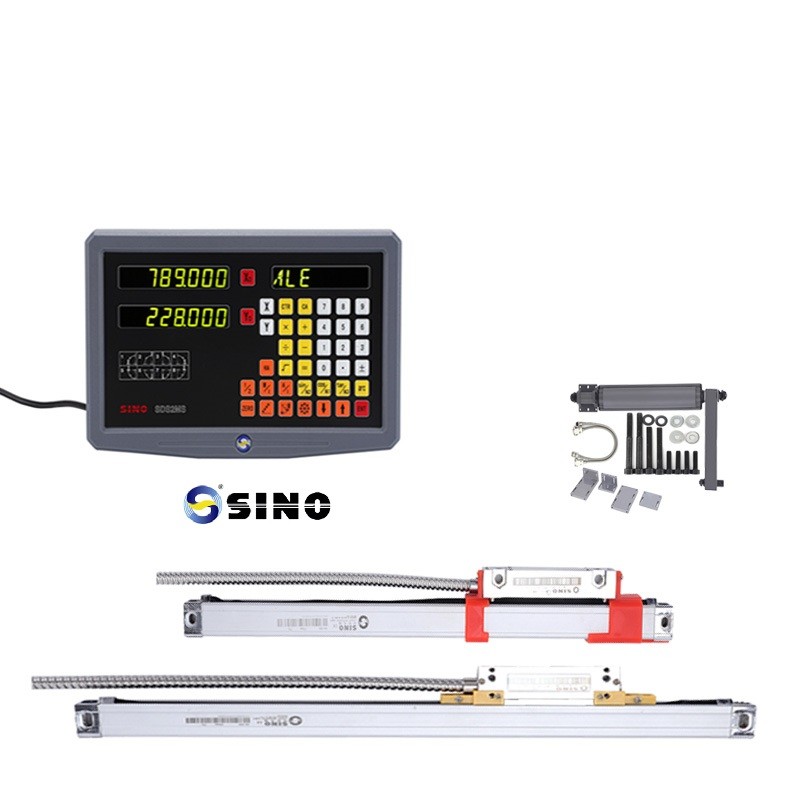

The rack in the picture is optioned, not standard product.
