Digital Readout Display With Linear Glass Scale SINO 2-Axis SDS6-2V
The SDS6-2V digital reader adopts the most modern 16 bit microcontroller technology, which can replace any type of basic or complex functions required by the SDS2 series. Due to its improved performance, this means that it can complete more tasks and more accurately locate the position of the machine tool.
The functions of SDS6-2V include:
200-Point Auxiliary Zero Position Function
Split Action in the Middle
Conversion of "mm/inch" shown
Radius/Diameter Switch Display
Restitution for Divided Errors
Restitution for Linear Errors
Recall for Power Outages
Change of bedtime
Mathematical calculations
RS-232-C interface option
Where SDS6-2V DRO can be applied:
Uses for Machining
PCD circumferential division (fits milling machines and spark testers)
Involute chamber cutting function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)
Dithering prevention function (relevant to grinding machines)
Description of SDS6-2V:
There are several uses for the dual axis electronic reader DRO SDS6-2V. Users can change the characteristics of the machine and adjust the system architecture to fit different processing needs. The SDS6-2V can be used by operators for a number of activities, such as measuring taper, computing angles, drilling holes at regular intervals around a circle's center, applying digital filters, and traversing angled surfaces. Because of its adaptability, SDS6-2V may be employed in a variety of machining scenarios. Additionally, it can be used to show the machine tool's motion trajectory, enhance users' comprehension of the device's motion trajectory, facilitate real-time tracking of the machine tool, and assess if the machine tool is traveling in accordance with its intended path. Additionally, it is the first company in China to use calculators with 16 and 32 bits and DRO technology. The DRO system's maximum a/b input frequency is 5.
Model No:.
SDS6-3V : Standard
SDS6-3VF : Extra communication function
SDS6-3VE : Extra out put EDM function
Characteristic:
Imported chips
Industrial quality
High precision data
Stronger resistance to interference
Function key for machine output(EDM)
Packaging List :
| 1 PC | 2 Axis LED digital readout SDS6-2V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

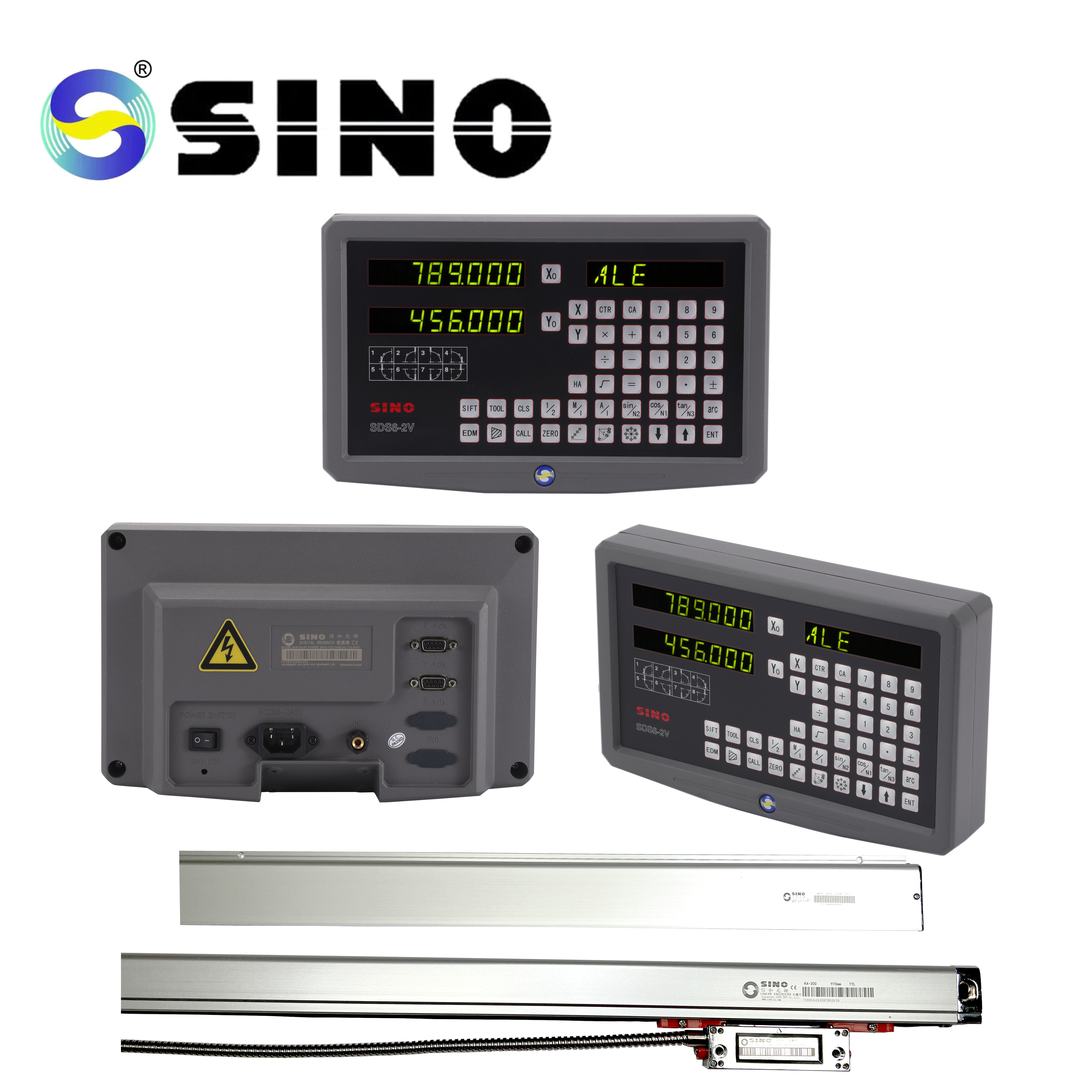

Product image /photos:
The rack in the picture is optioned, not standard product.
