Sino SDS2-3MS 1um DRO SINO Digital Readout System SDS3MS Display

Sino SDS2-3MS Lathe Milling Machine With 1um DRO Digital Readout System And SDS3MS Display

A DRO SDS3MS is a multipurpose gauge that has a three-coordinate numerical display.
With a different machine tool, this gauge can be configured to accomplish the required task by simply altering the specifications.

Parameters for the SINO SDS3MS digital readout​

The voltage range: AC 85 to 250 volts and 50 to 60 Hz
2. Use of 15 w of electricity: 25 va

3. Use the notation a coordinate, two coordinates, and three coordinates to coordinate the integer.
4. Demonstrate that a signed seven display (with two or three axes) delivers data information utilizing eight meters of words and show symbols.
5. Two kilos
6. The EIA 422 open collector output signal and TTL input signal are combined with a user-friendly programmable controller interface.
7. Allow a frequency of more than 100 KHz for the signal input.
8. Including the resolution in steps of 10, 5, 2, 1, 0.5, and 1 micron

Basic Functions

mm/inch Transformation Absolute/Relative Transformation
Mid-split Function Simple “R” Function
Smooth “R” Function Divide the perimeter of circle
Save 200 workpiece zero points Divide holes on an oblique line
Mathematics calculation Tool diameter compensation
Bevel process Zero location autorest

Product image /photos:

The rack in the picture is optioned, not standard product.

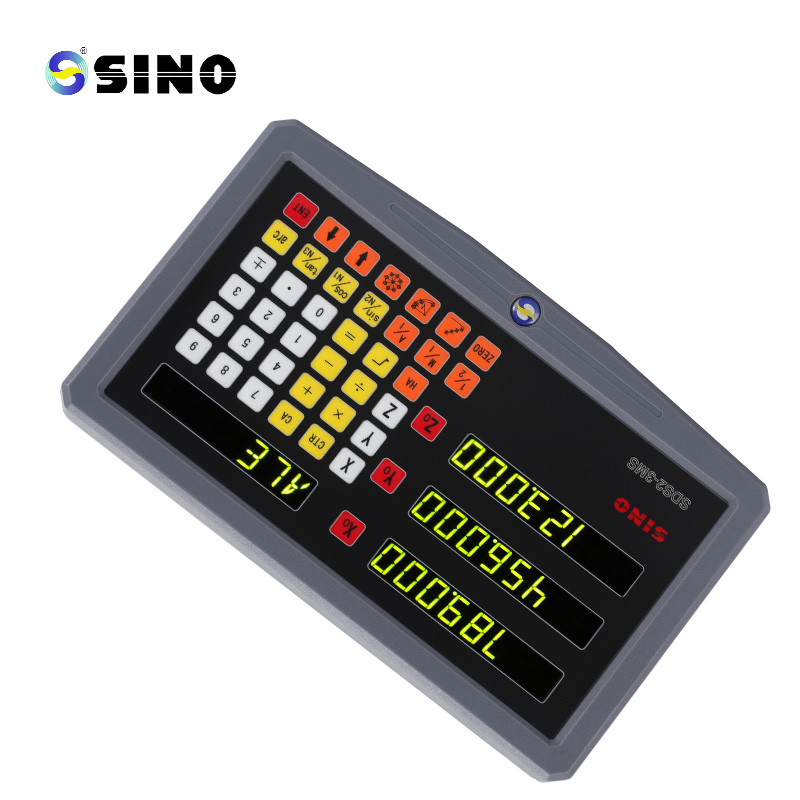

1um SINO Digital Readout System

DRO SINO Digital Readout System
