Complete Set 4 Axis LCD Digital Readout DRO Glass Linear Scale Encoder Sensor For Milling Lathe
The SDS5 DRO uses late-model 32-bit embedded computing technology. It has a 5.6'5 TFT colorful screen with captions in Chinese and English, up to four axes, a high-capacity hard drive, and USB equipment that can communicate quickly with a PC.
SDS5-4VA DRO Digital Readout DRO Functions:
PCD circumferential division (suitable for spark testers and milling machines)
Function of included chamber machining (relevant to milling machines)
Angular surface processing and bevel machining (relevant to milling machines)
N3 function (Milling machine applicable)
Using a milling machine, diagonal boring
R-arc function (milling machine applicable)
Function for measuring taper (fits lathes)
200-tool collection (suitable for lathes)
Function to prevent dawdling (relevant to grinding machines)
Specifications of SINO SDS5-4VA digital readout system + Grating Ruler
Details

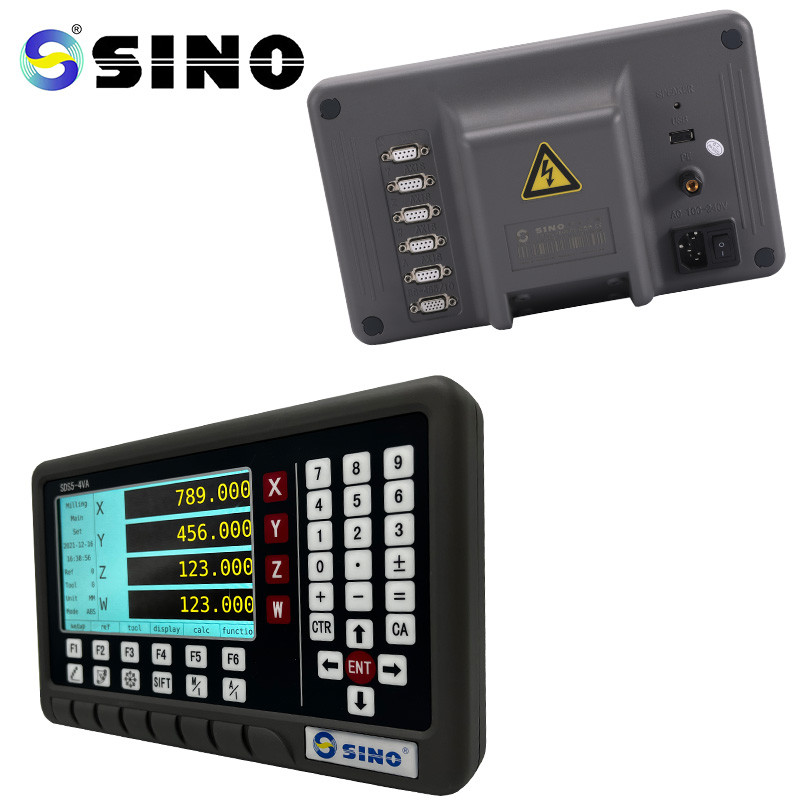

Product: Digital Readout System SINO SDS5-4VA
Sort: DRO Luxury Type
Entry: four axes
Signal of Input: TTL/RS-422
Container: Metal
Application: Glass scales for EDM, milling, drilling, and grinding machines, as well as CNC and manual lathes
Use: Position measuring tool for grating scale with one, three, or four axes
Certification: ISO9001, CE, and ROHS
IP67 Sealing Protection Class
Feature: User-friendly, simple to install, robust and long-lasting
Report on Machinery Tests: Given
Packaging List :
| 1 PC | 3 Axis LED digital readout SDS5-4VA |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |
Product image /photos:
The rack in the picture is optioned, not standard product.
