General Readouts of the Metal Sino SDS5-4VA Digital Display Meter with Four Axis LCD Screen DRO
The Loksshun-developed sophisticated software and dual frequency laser instrument enable the SDS5 DRO to have up to 600 non-linear error correction points on each axis. A data file is created and saved on the hard disk after contrastively measuring data for data processing. This data file is utilized to reduce error of the subsequent measure.
SDS5-4VA DRO Measuring Machine Functions:
1. Conversion of measurements to inches/mm
2. Relative to Transformative Absult
3. Linearity Error Compensation
4. The Function of Midsplit
5. No Adjustments
6. Full Citation Mark
7. Forming Decisions
Specifications of SINO SDS5-4VA digital readout system + Grating Ruler
SINO SDS5-4VA Digital Readout System is the product.
Sort: DRO High-End
Four input axes
Input Signal: TTL/RS-422
Metal containers
Use: Glass scales for CNC and manual lathes, as well as EDM, milling, drilling, and grinding machines
Use: Set up a measurement device with one, three, or four axes on a grating scale.
ROHS, CE, and ISO9001 certification
Sealing Protection Class IP67
Feature: Easy to use, durable, long-lasting, and simple to install
Document on Equipment Testing: Assigned
Packaging List :
| 1 PC | 4 Axis LED digital readout SDS5-4VA |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

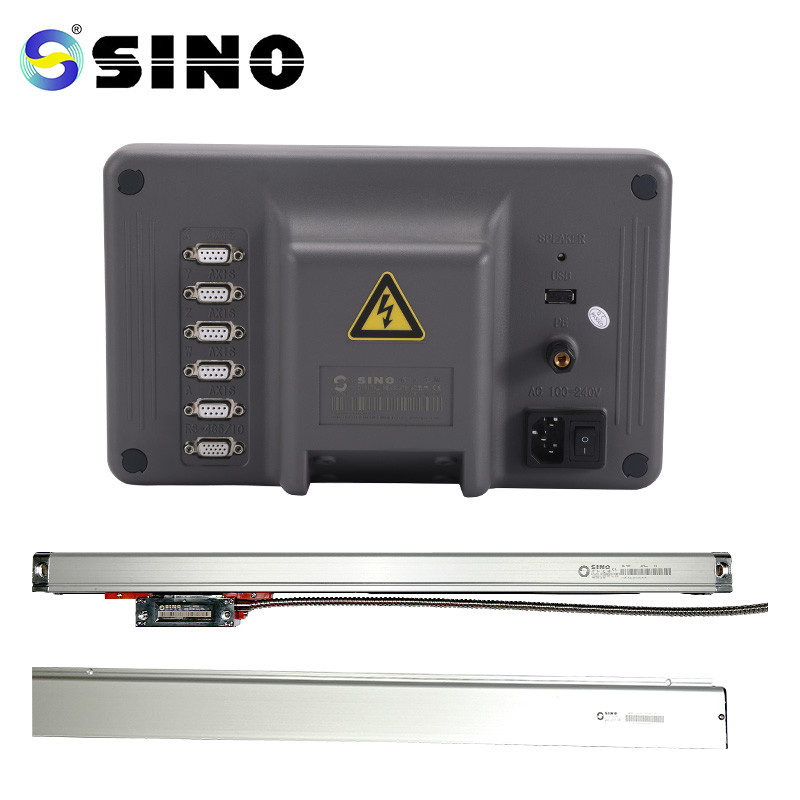

Product image /photos:
The rack in the picture is optioned, not standard product.
