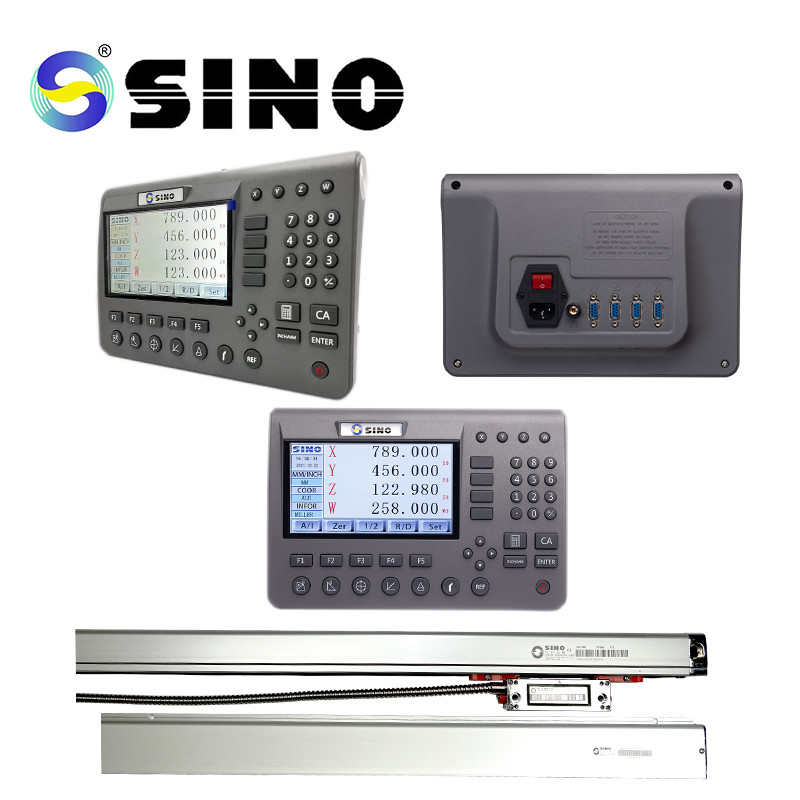

SINO SDS200 Metal 4 Axis LCD Digital Readout Display Kit KA-300 Linear Scale
All Chinese optical linear glass scales are compatible with the LCD display, which is commonly found in drilling, milling, lathe, and drilling equipment.
The fact that it can flip between Chinese and English on a single display makes it very useful for users of milling machines and lathes from different countries.
The accessories for a four-axis display include the protective cover, power cable, support bracket, screw, user handbook, and support rod.
Funnctions of Sino SDS200 DRO Optical Scale
Zero adjustment, automated middling, millimeters to inches conversion, absolute to relative conversion, and radius to diameter conversion are among the features.
conversion, 200-tool capacity, computation function and brightness modification Present setting; Buzzer setting; Tape
measurement and linear error correction
Specifications for Sino Linear scale encoder
A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS200.
It is possible to connect up to four linear encoders with this four-axis type. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.
strong die cast casing with a front panel membrane that is both haptic and long-lasting.
large, easily readable LCD screen.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.
Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
