SINO 3 Axis SDS6-3V Digital Readout With Linear Scale KA600-1300mm DRO For Lathe Machine
2/3 Axis Digital Readout SINO SDS6-3V with KA600-1300mm Linear Scale and 5um DRO Display

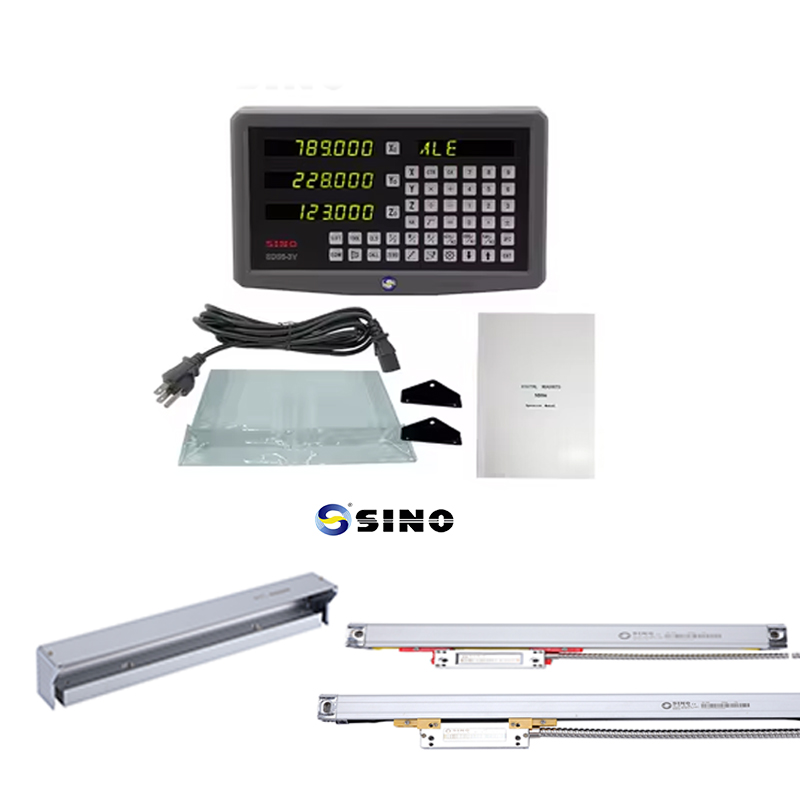

Package includes:
Linear glass scale, 500–1200 mm, in a single piece. Available with resolutions of 0.5/1/5um.
Customized encoder lengths (L0) can be provided to meet customer requirements (Length: 1000–3000 mm).
Single-Turn vs. Multi-Turn Encoders:Absolute encoders can be categorized into single-turn and multi-turn types.
Single-Turn Encoders: These encoders provide position information for one full revolution (360 degrees). They are capable of measuring the position within a single rotation.
Multi-Turn Encoders: These encoders track position across multiple revolutions. They include additional sensing elements or mechanisms to record the total number of complete rotations, allowing them to measure the position over several turns.
Output: The electrical signals generated by the optical sensors are processed by the encoder's electronic circuit, which converts them into a digital or analog output representing the absolute angular position. This output can then be transmitted to a digital display, controller, or computerized system for further processing and control.
Accuracy and Precision: Absolute optical angle encoders are renowned for their high accuracy and precision.
Accuracy refers to the maximum deviation from the true position, indicating how close the measured position is to the actual position.
Precision refers to the encoder's ability to detect and resolve small angular changes, reflecting the consistency of its measurements over time.

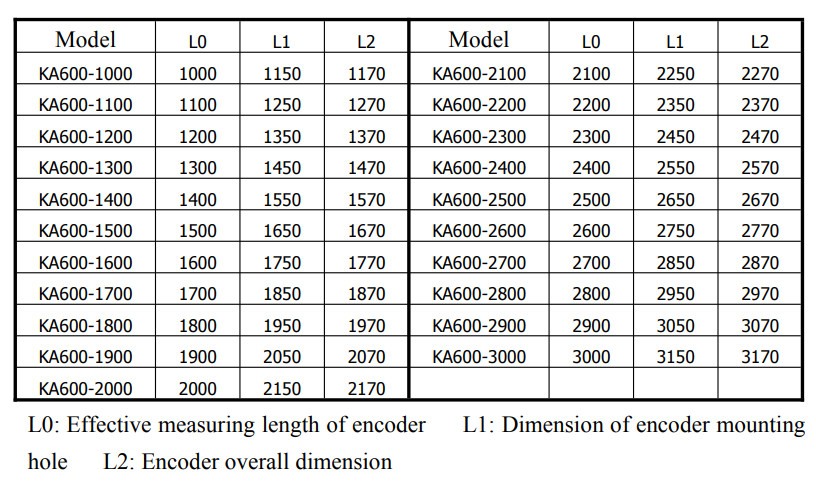

L0: Effective measuring length of the encoder
L1: Dimension of the encoder mounting hole
L2: Overall dimension of the encoder
The KA-600 encoder, designed specifically for large machine tools, is characterized by its large size and excellent rigidity. Additional support can be added at any position along the encoder to further enhance its rigidity and stability. The encoder length ranges from 1000 mm to 3000 mm.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
