SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine

  • 1
  • 2
  • 3

Brand Name : SINO

Model Number : SDS2MS

Certification : CE, RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 days

Packaging Details : Carton

Name : SINO SDS2MS Digital Readout System

Number of Axis : 2 Axis

Usage : All kinds of Two axis propose

Suitable for : Milling Machine

Name 2 : Digital Readout

Voltage : 100~240V

Signal : TTL / RS422

Color : Black

Warranty : 1 year

Number of Axes : 2/3

Resolution-μm : 0.1/0.2/0.5 /1/2/5

Contact Now

SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine​

The DRO SDS2MS is a versatile two-coordinate numerical display gauge capable of multifunctional use. It can be easily adapted to different machine tools by adjusting its parameters to suit specific functions as required.

Upgraded Functions:

  1. Radius/Diameter Conversion: Allows seamless switching between radius and diameter measurements for enhanced flexibility in machining tasks.
  2. MM/Inch Conversion: Enables quick conversion between metric (mm) and imperial (inch) measurement units to accommodate different machining standards.
  3. Absolute/Relative Conversion: Supports switching between absolute and relative measurement modes, crucial for accurate positioning and incremental adjustments during machining operations.
  4. Mid-Splitting Function: Facilitates precise midpoint positioning by automatically calculating and displaying the center point between two set positions.
  5. Easy "R" Function: Simplifies radius measurement by providing straightforward input and calculation of radius values.
  6. Smooth "R" Function: Enhances radius measurement accuracy by ensuring smooth calculation and display of radius values, optimizing machining precision.
  7. PCD Hole Positioning on Circumference: Allows for easy and accurate positioning of holes arranged on a pitch circle diameter (PCD), essential for tasks such as bolt hole drilling in circular patterns.
  8. 200 Groups Zero Position Memory: Provides extensive memory capacity for storing up to 200 zero positions, enabling efficient setup and management of multiple machining setups or workpieces.

Specifications of DRO SDS2MS Digital Readout System

  1. Voltage Range: AC 85V to 250V, 50Hz to 60Hz.
  2. Power Consumption: 15W / 25VA.
  3. Coordinate System: Supports single-axis (a coordinate), two-axis, and three-axis configurations.
  4. Display: Seven-segment display for showing signed data information, using eight characters to display symbols for two or three axes.
  5. Net Weight: 1.3 kg (2.9 lbs).
  6. Input Signal: Accepts TTL and EIA-422 open collector output signals, providing convenient interfacing with programmable controllers.
  7. Input Signal Frequency: Supports frequencies greater than 100 kHz.
  8. Resolution: Various resolution options supported: 10 microns, 5 microns, 2 microns, 1 micron, and 0.5 microns.

Feature:

  1. Robust Hardware Design Coupled with Professional Software
  2. Achieve More Advanced EMC Testing Targets with Significantly Improved Anti-Interference Capabilities
  3. Meet the Needs of Different Processing Environments

Packaging List :
1 PC 2 Axis digital readout SDS2MS
1 PC Transparent cover
1 PC Instruction Manual (English)
1 PC Cable

Product image /photos:

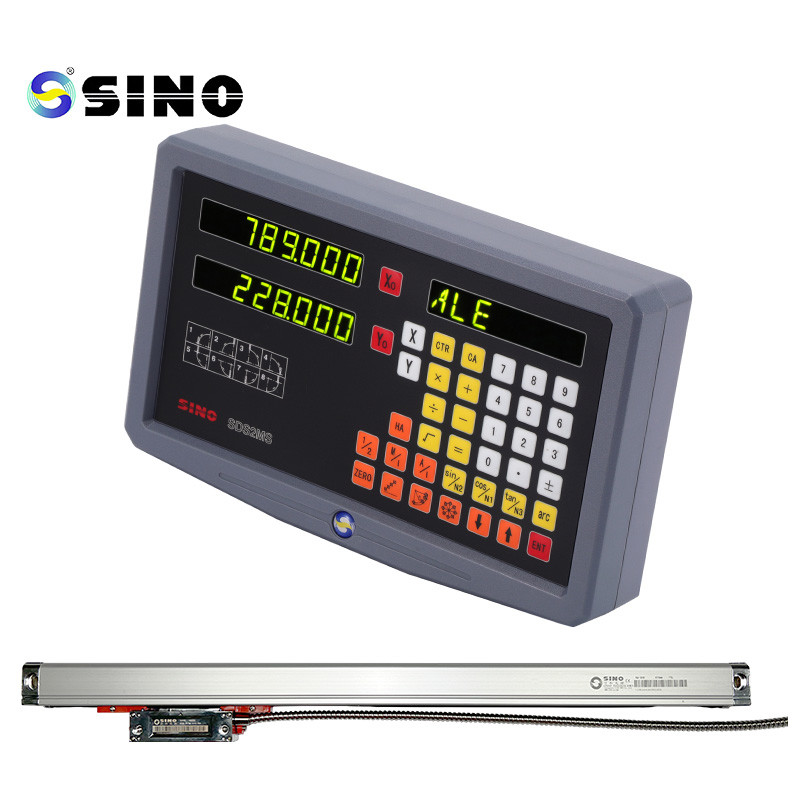

SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine

SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine

SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine

The rack in the picture is optioned, not standard product.

SINO SDS2MS 2 Axia DRO Digital Readout With Linear Encoder For Lathe Milling Machine
