2 Axis Digital Readout DRO SINO SDS200 Digital Readout 240V Metal With Linear Encoder Scale For Grinding Machines
Metal 2-Axis Digital Readout (DRO): A Reliable Tool Tailored for Grinding Machines
The RoHS-compliant Metal TFT 2-Axis Digital Readout (DRO) is a dependable and versatile device expertly crafted for grinding machines. This product ensures precision and durability, making it an ideal choice for enhancing grinding operations.
Features:
Our RoHS-compliant 2-Axis Digital Readout (DRO) features a Metal TFT display that provides clear, easy-to-read measurements. It accurately tracks both longitudinal and crossfeed movements, making it ideal for grinding applications. The user-friendly interface ensures intuitive operation, while its durable construction is designed to endure the challenging conditions of grinding environments.
Benefits:
The SINO SDS200 RoHS-compliant 2-Axis Digital Readout (DRO) offers precise control over grinding processes, boosting accuracy, repeatability, and productivity. It delivers real-time measurement feedback for prompt adjustments while supporting eco-friendly practices.

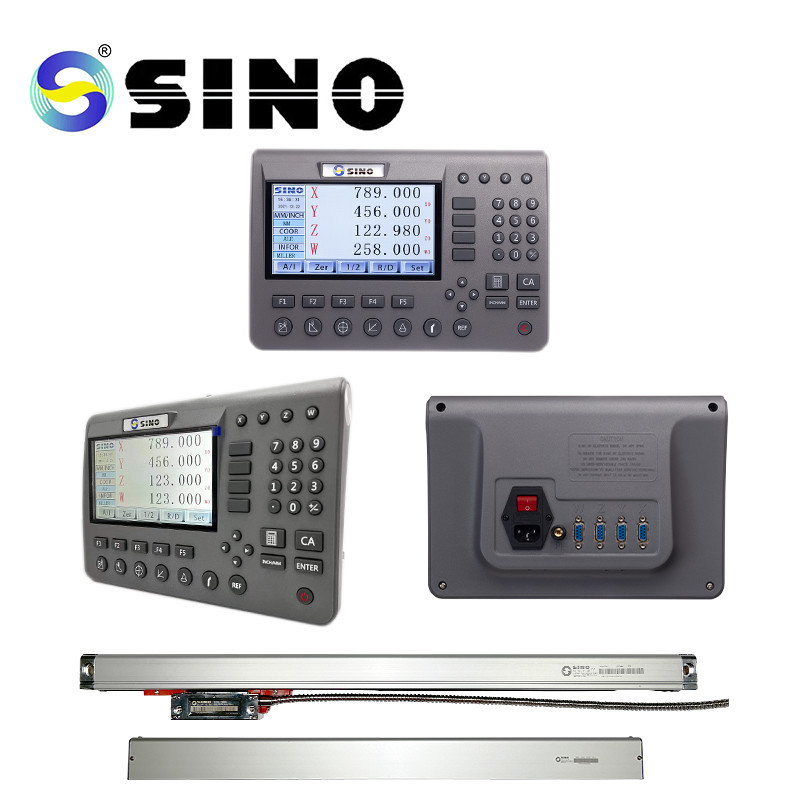

This package is designed specifically for 2-axis grinding machines and includes one high-quality 4-axis TFT display DRO SDS 200 and two high-precision 0.001 mm linear scales KA-300. The scales, featuring yellow lips, ensure smoother operation and enhanced measurement accuracy.
Package list:
| Item name | Metal LCD Grinding Machine DRO kit |
| Digital Readout (DRO) | SDS 200 |
| Linear scale for axis X | KA-300: 70-1020mm |
| Linear scale for axis Y | KA-300: 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type D |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 set) |
| Others | Cable / Screws / Manual |
| Bracket for Grinding | 1 set (optioned, not standard) |
Functions for grinding machine:
- Digital Filter Function
Bracket for Grinding:
Special for the cylinder type grinding header, so that's not standard accessory.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
