SDS 2MS 2-Axis Digital Readout Dro Color Panel Linear Scale Series Milling Machine

SDS 2MS 2-Axis Digital Readout Dro Color Panel With Linear Scale Series For Lathe And Milling Machine

The SDS 2MS AC 100~240V Digital DRO 2 Axis KA300 Magnetic Scale System With Linear Error Correction, Nonlinear Error Cor

Two-axis DRO kit: This package supports dual-axis measurements, enabling simultaneous monitoring and control of movements along two axes of your machine, such as the X and Y axes in a milling machine.

Magnetic scale encoder technology: The KA300 linear scale encoder system utilizes magnetic technology to deliver precise and consistent measurements. The magnetic scales are installed on the machine axes and utilized with the DRO display unit to provide position feedback.

Wide voltage compatibility: The SDS 2MS DRO kit is engineered to accommodate a broad voltage range and performs optimally between 100V and 240V AC. This voltage flexibility ensures compatibility with various power supply standards.

User-friendly interface: The DRO display unit features an intuitive interface, typically equipped with a digital display and buttons for effortless operation. It enables users to switch between different measurement units, set presets, execute calculations, and access various measurement functions.

Versatility: The SDS 2MS DRO kit is suitable for a variety of precision machining applications, including milling, drilling, turning, and grinding. It enhances accuracy, efficiency, and productivity in machining operations.

Enhanced Components:

1. Linear error correction is the initial step.
2. Following that, nonlinear error correction is implemented.
3. Disable the memory function.
4. Maintain a consistent tempo without alterations.

The Digital DRO 2 axis Readout details

1. Operating within an AC voltage range of 85 to 250 volts at 50 to 60 Hz frequency.
2. Power consumption rated at 15 watts when supplied with 25 volts.
3. Numeric values represented by single, dual, or triple coordinates.
4. Utilize display symbols to convey data through eight-word meters and seven displays for two or three axes.
5. Weight: 1.3 kilograms/2.9 pounds.
6. Input signal features a basic TTL interface with an open collector output conforming to EIA-422 standards and compatible with programmable controllers.

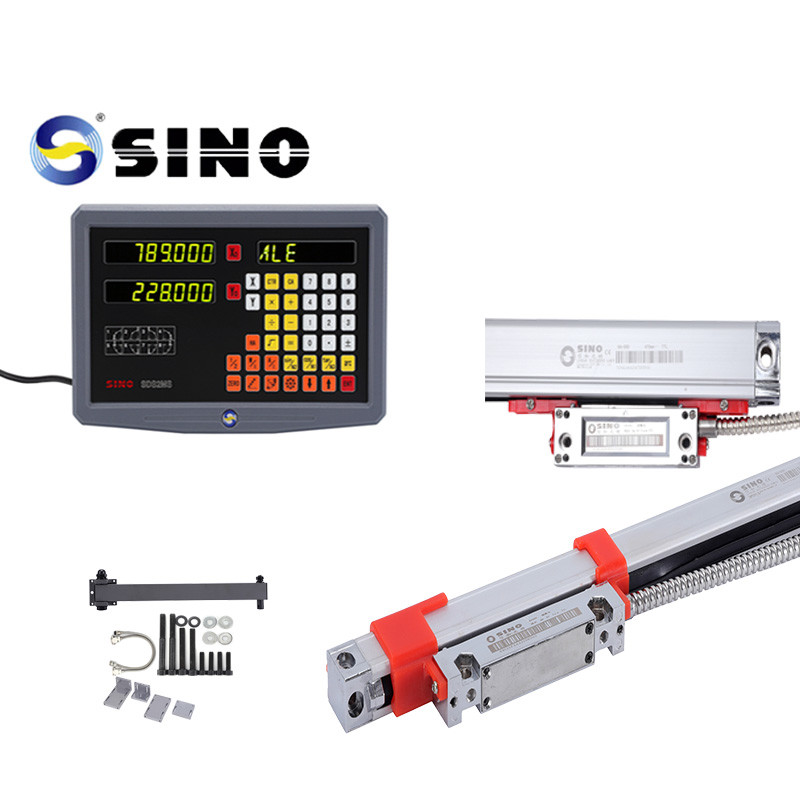

Product image /photos:

The rack in the picture is optioned, not standard product.

Milling Machine Digital Readout

Linear Scale Series Digital Readout

2MS 2-Axis Digital Readout

SDS 2MS 2-Axis Digital Readout Dro Color Panel Linear Scale Series Milling Machine Images
