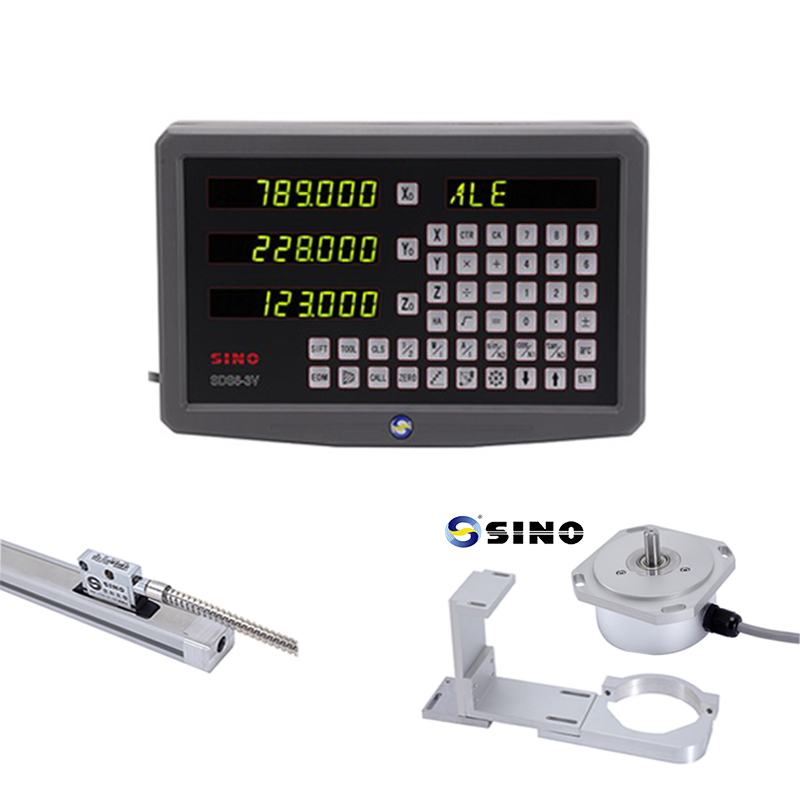

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

Brand Name : SINO

Model Number : SDS6-3VF, KA-300, KA-500

Certification : CE,RoHS

Place of Origin : Guangzhou, CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000 sets per month

Delivery Time : 5-8 days

Packaging Details : Carton

Item name : SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

Usage : Milling machine and lathe machine

System : LED DRO SDS6-3VF for Milling Head

Scale model : KA-300, KA-500

Signal : TTL / EIA-422-A

Resolution : 0.005mm/0.001mm

Voltage : AC 100V-240V

Meas. travel : 70-1020mm

Contact Now

SINO 3 axis metal milling machine DRO kit SDS6-3VF, RS232 output for aixs Z milling head linear encoder

The DRO SDS6-3VF includes an RS232-C interface for connecting the PC or other systems.

The package is designed specifically for 3 axis milling machines, with the axis Z being used for milling head positioning.
DRO SDS6-3VF has a 3-axis display with RS232-C output, two conventional linear encoders KA-300, and one tiny encoder KA-500.

Package list:

Item name RS232-C output DRO milling head kit
Digital Readout (DRO) SDS6-3VF
Linear scale for axis X KA-300: 670-1020mm
Linear scale for axis Y KA-300: 370-570mm
Linear scale for axis Z KA-500: 170mm
Rack for DRO L400
Protection cover for X scale Type C
Protection cover for Y scale Type D
Accessory for Z Milling head KA-500 milling head accessory (1 set)
Bracket for scales T-bracket (1 set)
Others Cable / Screws / Manual

Functions for milling machine:

  1. Midsplit
  2. Smooth “R”
  3. Simple “R”
  4. Positioning the oblique line hole
  5. PCD Circle Equal division
  6. Bevel processing
  7. Rectangular Inner Chamber Progressive Machining

Detail Information:

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

Pin Description:

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS6-3VF Digital Readout Metal LED 3 Axes For Milling Machine DRO System Multifunctional
