Lathe Boring Machines A Precise Aluminum Slim Linear Scale With EIA-422 Output
EIA-422 compliant precision aluminum slim linear scale with lathe, boring, and milling machine output
Features:
Thin Aluminum Design: The linear scale's thin, light aluminum structure allows it to be used in locations with limited space without sacrificing durability.
EIA-422 Output: The scale has an EIA-422 output, a digital communication protocol that is standardized. This enables dependable and fast data transfer between the controller of the machine and the scale.
High Precision: The linear scale's optical sensor technology, which offers choices for 5um or 1um resolution, guarantees high precision measurements that allow for precisely calibrated machining processes.
Robust Design: Constructed from aluminum, the linear scale has exceptional rigidity and longevity, making it able to survive the long-term rigors of lathe, boring, and milling operations.
Functionality:
On lathe, boring, and milling machines, precise linear displacement measurement is made possible by the Aluminum Slim Linear Scale with EIA-422 Output. It enables accurate and repeatable machining processes by giving the machine's controller exact position feedback. Reliable data transmission, minimal signal interference, and preservation of data integrity are all ensured by the EIA-422 output.
Usage:
The lathe, boring, and milling machines are the main applications for the compact linear scale, since these devices require accurate linear measurements. It is frequently used in metalworking sectors where accuracy and precision are necessary for high-quality results, such as production, fabrication, and precision engineering.
Package includes:

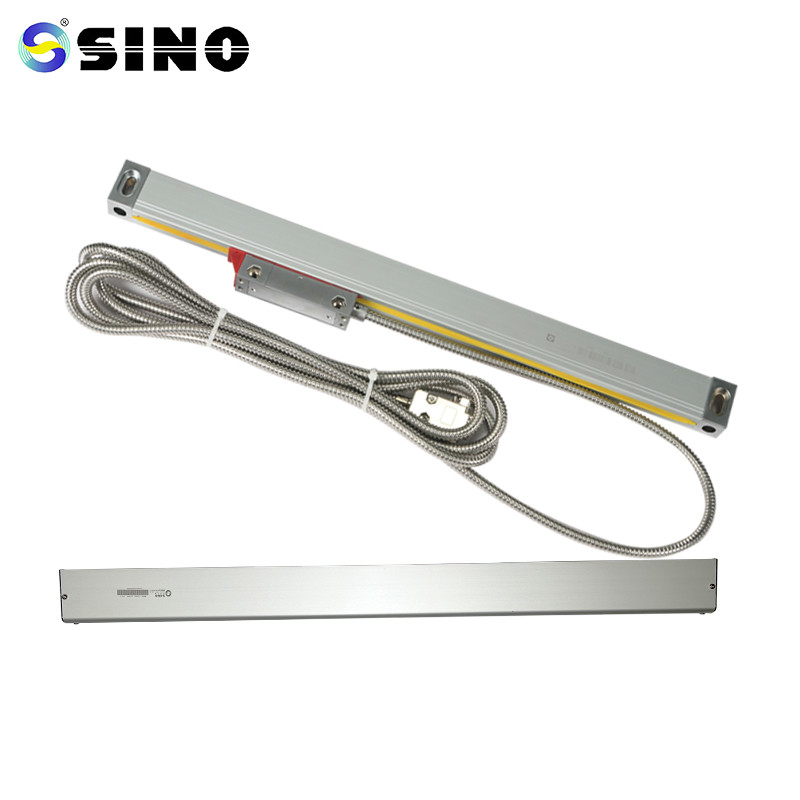

Glass linear scale, 1 piece, KA500-470mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 | | | | |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Operating Guidelines:
The user must go through the General Description, Safety Considerations, and
the entirety of Chapter 1's content 3.
The General Description, the Safety Considerations, and all of the details in
The specialists must strictly abide by Chapters 1 through 3 when performing installation, testing, and maintenance.
understand every single concept from chapters 4-5.
This operation manual only addresses the SINO KA series of integrated circuits.
simple coding.
4. Please read the safety recommendations provided below. It contains essential information about
Use your linear encoder carefully.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
