SINO SDS2-3MS Digital Readout System For Lathe And Milling Machines Featuring 3-Axis Numerical Display
The SINO SDS2-3MS Digital Readout (DRO) System for Lathe and Milling Machines
The SINO SDS2-3MS DRO system is designed specifically for lathe and milling machines, offering precise measurement feedback with its SDS3MS numerical display. This system enables operators to monitor and control machining processes with accuracy and real-time data.
Features:
SDS3MS Display: The SDS2-3MS DRO system includes the SDS3MS display, featuring a clear and user-friendly interface for monitoring machine measurements. Equipped with function buttons and a keypad, it ensures convenient operation during machining tasks.
Multiple Axes Support: Designed to handle multiple axes, the SDS2-3MS DRO system offers precise measurement feedback and control across different machine movements. This capability allows machinists to achieve accurate positioning and control on various axes simultaneously.
Compatibility with Lathe and Milling Machines: Suitable for both lathe and milling machines, this DRO system provides versatility for machinists working with different types of equipment. It seamlessly integrates into machine control systems, facilitating efficient operation across various machining applications.
High Precision: Delivering high accuracy in measurement readings, the digital readout system enables precise control over machine movements. This capability is essential for achieving tight tolerances and optimal machining results in diverse manufacturing tasks.
Incremental and Absolute Modes: The SDS2-3MS supports both incremental and absolute measurement modes, offering flexibility for different machining requirements. Operators can easily switch between modes as needed, ensuring adaptability to various machining scenarios.
Functionality:
The SDS2-3MS SINO Lathe Milling Machine DRO Digital Readout system enables precise monitoring and control of machine movements during lathe and milling operations. By providing real-time measurement feedback, operators can promptly adjust and correct machining parameters to achieve the desired precision and quality in their workpieces. This system enhances operational efficiency and ensures consistent performance across various machining tasks.
Usage:
The DRO system is widely used in machining operations that require precise measurement and control, such as turning, milling, drilling, and boring. It is applied in various industries, including metalworking, woodworking, automotive, aerospace, and more.
Applicable Scenarios:
Lathe Operations: In lathe operations, which include facing, turning, tapering, threading, and grooving, the DRO system enables operators to monitor and control tool movements with high accuracy. This capability ensures that machining dimensions are precisely achieved, critical for manufacturing cylindrical or conical components used in various industries.
Milling Operations: For milling tasks such as contouring, slotting, drilling, and profiling, the DRO system plays a crucial role in monitoring cutter movements. It allows operators to set precise coordinates and track tool positions accurately throughout the milling process. This precision is essential for creating complex shapes and profiles in metals, plastics, and other materials used in manufacturing.
The DRO SDS3MS is a versatile digital readout system equipped with a 3-coordinate numerical display, designed to adapt seamlessly across different machine tools by adjusting its parameters. This multipurpose gauge allows operators to switch functions easily, making it suitable for various machining applications without the need for complex reconfiguration.
SINO SDS3MS digital readout parameters
1.Voltage Range: The DRO system operates within a voltage range of AC 85V to 250V and supports frequencies from 50Hz to 60Hz. This wide range ensures compatibility with various power systems worldwide.
2.Power Consumption: The system consumes 15 watts of power or 25 volt-amperes (VA). This indicates the electrical load it places on the power source during operation.
3.Coordinate Number: The DRO supports coordinate display for one, two, or three axes (coordinates). This flexibility allows it to be used with different types of machine tools that require different axis configurations.
4.Display: It features a seven-segment display for showing numerical data. For systems with two or three axes, it can output information using eight-character alphanumeric displays, likely showing axis positions or other relevant data.
5.Weight: The DRO system weighs approximately 2 kilograms (kg), which is relevant for installation and transportation considerations.
6.Input Signal: It accepts TTL (Transistor-Transistor Logic) and EIA-422 open collector output signals. These are standard interfaces used in digital electronics and communications, making the DRO compatible with programmable controllers and other equipment.
7.Input Signal Frequency: The DRO system can handle input signal frequencies greater than 100 kHz. This high-frequency capability ensures it can process rapid changes in position or other signals from machine tools operating at high speeds.
8.Resolution: It offers selectable resolution options for connecting sensors or encoders, ranging from 10 micrometers (µm) down to 0.5 micrometers (µm). This fine resolution capability allows precise measurement and control of machining operations, crucial for achieving tight tolerances in manufacturing processes.
Basic Functions
Conversion between mm and inches
Absolute and relative coordinate transformations
Mid-point splitting function
Basic "R" function for radius calculation
Smooth "R" function for precise curves
Circle circumference division
Storage of 200 workpiece zero points
Hole spacing along oblique lines
Mathematical calculations including tool diameter compensation
Beveling operations
Automatic reset to zero position
Packaging List :
| 1 PC | 3 Axis digital readout SDS3MS |
| 1 PC | Transparent cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

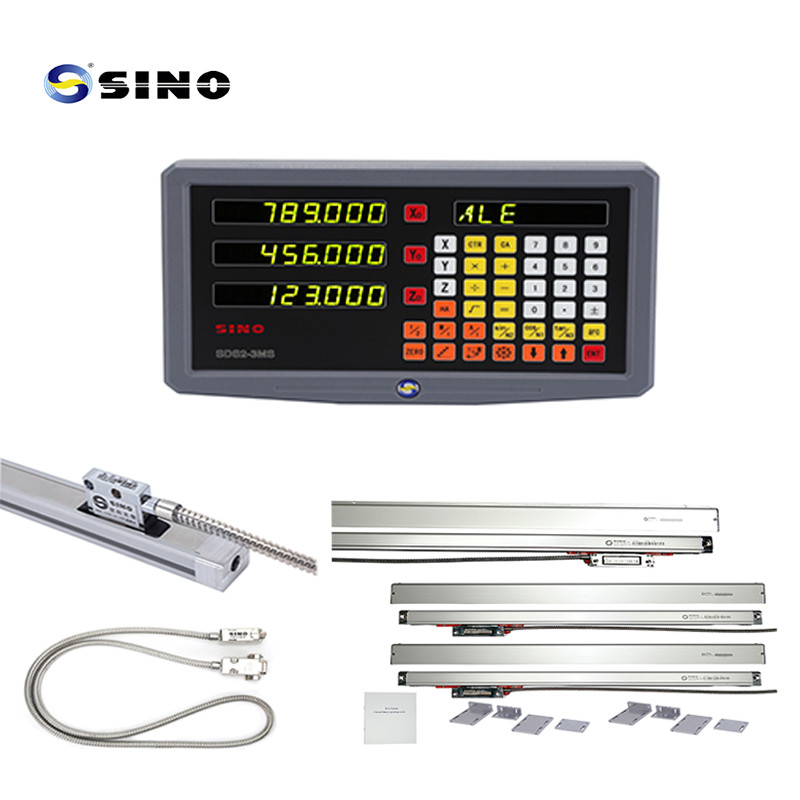

Product image /photos:
The rack in the picture is optioned, not standard product.
