SINO KA600 1200mm 5 micron TTL EIA-422-A DRO Linear Glass Scale Encoder.

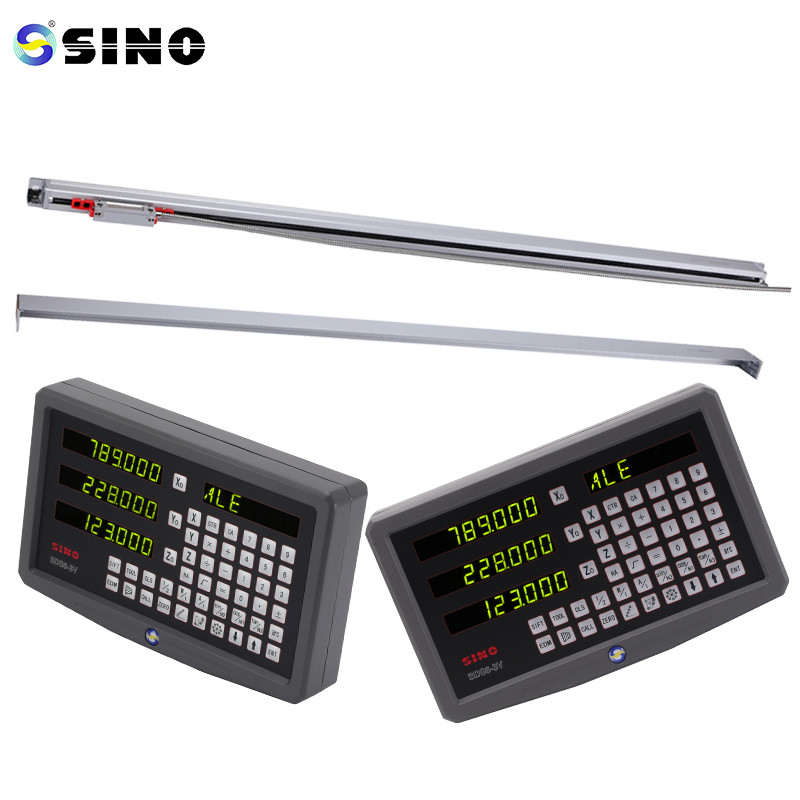

2/3 axis digital readout SINO SDS6-3V KA600-1300mm Linear Scale DRO Display 5um
Package includes:
Linear glass scale, 500-1200 mm, single piece.
There is a 0.5/1.5um resolution available.
Customers can have encoder lengths (L0) customized to meet their specific demands.(Length:1000-3000mm)
Absolute encoders can be either single-turn or multi-turn. Single-turn encoders offer position information within one full revolution (360 degrees), whereas multi-turn encoders provide position information over many revolutions. Multi-turn encoders feature additional sensing elements or processes that count the number of full revolutions.
Output: An electronic circuit in the encoder processes the electrical signals provided by the optical sensors, converting them into a digital or analog output indicating the absolute angular position. This output can be sent to a digital display, a controller, or a computerized system for additional processing and control.
Accuracy and Precision: Absolute optical angle encoders are known for their exceptional accuracy and precision. Accuracy is commonly defined as the maximum variation from the true location, whereas precision relates to the capacity to resolve small angular shifts.
L0: Effective measuring length of the encoder. L1: Dimension of the encoder mounting hole.
L2: Encoder's overall dimension
The KA-600 encoder is specifically developed for large machine tools.
Large size with good stiffness.
The length is 1000~3000mm.
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
Product Tags:
|
|
SINO KA600-1300mm with SDS6-3V 2/3 Axis 5um Digital Readout Linear Scale For Lathe Grinding Machine Images
|
