SINO 2-Axis Lathe Digital Readout System SDS2MS AC 100-240V Multifunctional With Linear Scale For Lathe And Milling Machines

SINO 2-Axis Lathe Digital Readout System SDS2MS AC 100-240V Multifunctional With Linear Scale For Lathe And Milling Machines

The LED DRO SDS2MS is a more affordable version of the SDS6 series digital readout. It features advanced 16-bit SCM technology and processes high-frequency A/B signals up to 5MHz. Designed for most 2-axis display applications, it is compatible with high-precision machines, including coordinate boring machines, floor boring machines, grinding machines, lathes, and milling machines. Its lightweight plastic casing helps reduce transportation costs.

Upgraded Functions:

1. Calculator Function: The SDS2 series enables you to adjust the number of decimal places to three, four, or five, improving calculation accuracy.
2. Non-Linear Error Compensation: The system supports up to 40 segments of non-linear error compensation, enhancing positioning accuracy.

3. Decimal Digits in Inch Mode: In inch mode, you can choose between 4 or 5 decimal places. Four digits are ideal for long-scale measurements, while five digits provide higher precision for detailed displays.

Specifications :

Supply Voltage: AC 80V-260V, 50-60Hz, US plug available
Power Consumption: 15VA
Operating Temperature: 0-45°C
Storage Temperature: -30-70°C
Input Signal: TTL/RS422 square wave
Signal Frequency: <5 MHz
Max Display Resolution: 0.5 µm
Min Angle Resolution: 0.0001/pulse

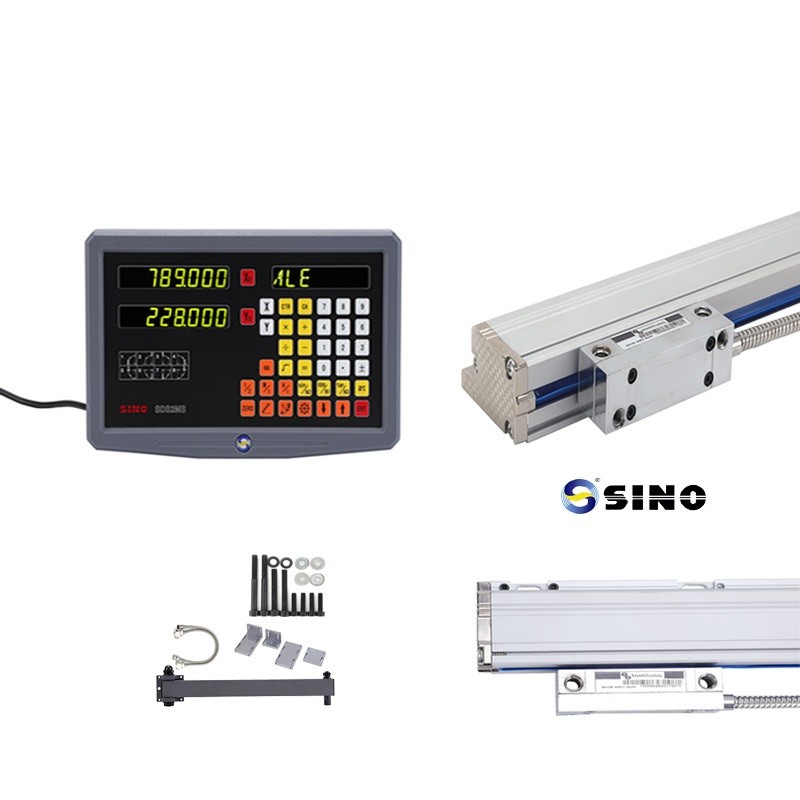

Product image /photos:

The rack in the picture is optioned, not standard product.

Multifunctional SINO Digital Readout System

Linear Scale SINO Digital Readout System
